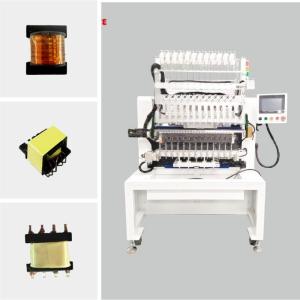

12 stations automatic transformer coil winding machine, high precision coil winding machine for transformer XT-TW1270
Product Features

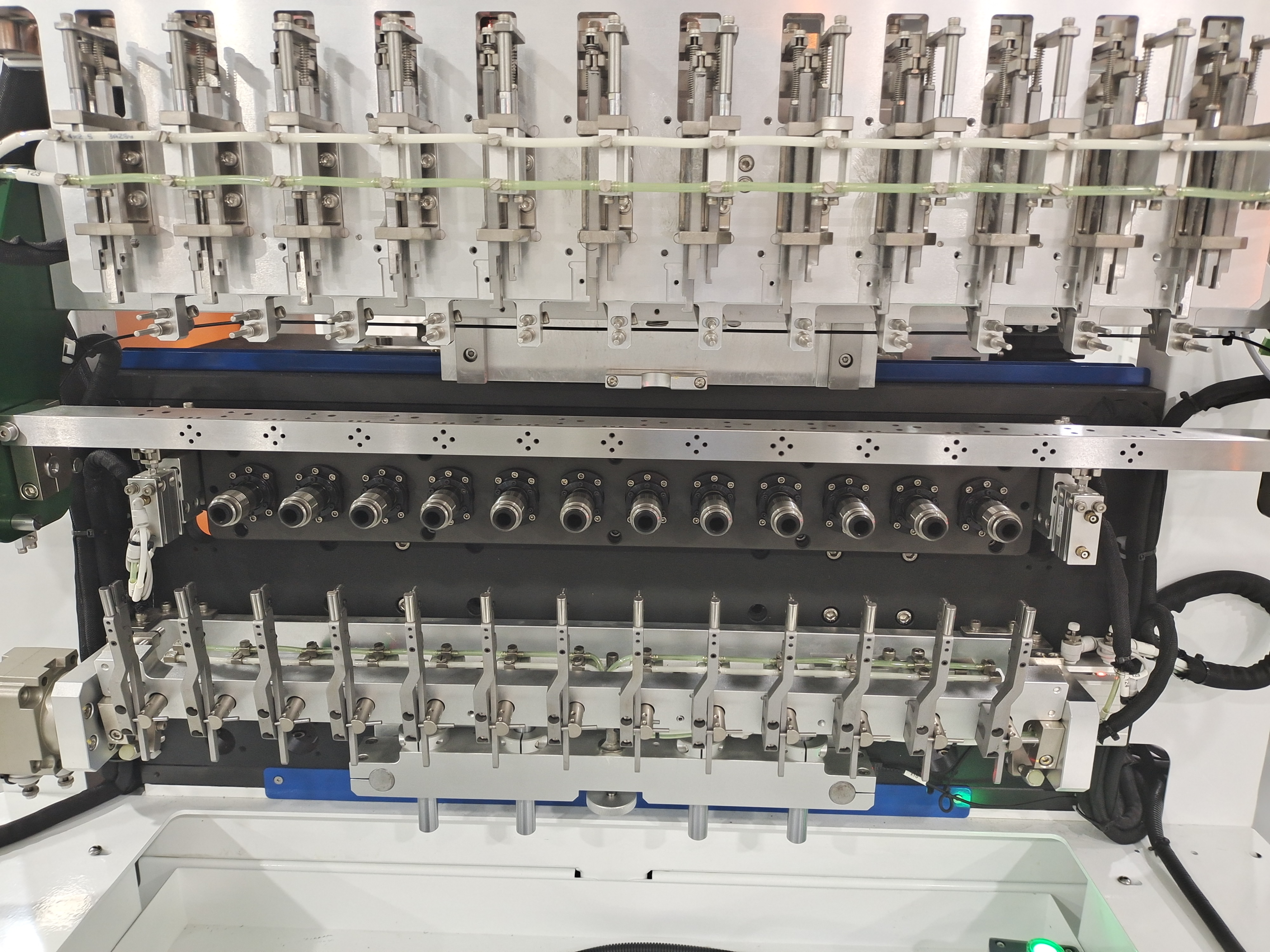

This device is a multi-axis winding machine with automatic Bobbin loading. Once winding is completed on the spindle, the tape-wrapping mechanism performs the wrapping action and then automatically unloads.
It is capable of reverse winding Pin products, and the thread nozzle frame can be flipped 90 degrees in the opposite direction. It possesses features such as ultra-high speed, miniaturization, and space-saving.
This machine showcases a novel appearance design, simple operation, and convenient maintenance. Programming can be done using a computer or touch screen. The unique joint fixture design and the adoption of precision tape counter-tension control tensioner ensure the product line is neatly arranged. Additionally, it offers automatic wire clamping and wire cutting, saving winding time.
The advantage of Xingte twelve stations transformer coil winding machine
The 12-station Automatic Transformer Winding Machine offers numerous advantages for businesses in the transformer manufacturing industry. Here are some of the positive features that make this machine stand out:
1. High Precision Winding: The machine offers highly accurate winding, which minimizes the waste of materials and reduces the costs of the production process. It also ensures that the end products meet the required specifications and quality standards.
2. Increased Efficiency: The twelve-station Automatic Transformer Winding Machine comes with eight 12 stations, making it very efficient and fast. It can handle multiple operations simultaneously, reducing production time and increasing output.
3. Easy to Operate: With an intuitive interface and user-friendly controls, the machine is easy to operate, saving the business time and effort. It also requires minimum maintenance, which ensures cost efficiency and productivity.
4. Versatile: The twelve-station Automatic Transformer Winding Machine can handle a wide range of materials and can be programmed to create various winding patterns. This versatility makes it suitable for different products and applications.
5. Improved Safety: The machine comes with built-in safety features that protect operators from accidents and hazards. This ensures that the workplace is safer and more secure for employees.
In conclusion, The twelve-station Automatic Skeleton Bobbin Transformer Winding Machine is a valuable investment for businesses in the transformer manufacturing industry. Its precision, efficiency, ease of use, versatility, and safety features make it a reliable and cost-effective solution for winding transformers.
Product parameters
| Model number: | XT-TW1270 |
| Wire Diameter : | 0.07 ~ 0.7mm( can customized) |
| Number of spindles | 12 spindles |
| Axis pitch | 50/70mm |
| Yield rate | ＞ 98% |
| Utilization rate | ＞85% |
| Power: | 6KW |
| Power supply: | AC 220V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 1630*1400*1800mm |
| G. W: | 850KGS |
Application areas
Xingte Transformers winding machine, Small Transformers, and custom wound coil solutions can be found in such applications and industries as military/defense transformers, Defense Industry, Rail, Electric Utility, Marine and Medical industries
Basic information about XINGTE
Experience
XINGTE was established in 2007, with more than 17 years R & D experience in the coil winding area
Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more than 30,000 square meters, which can ensure our Strong productivity
Service
XINGTE has more than 230 technical service and after-sales staff, worldwide service points worry-free after-sales service
Patents & certificates
Patents & certificates:
XINGTE obtained 120+ Patents and related certificates
Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee our Production capacity and fast delivery
Technology
XINGTE has more than 130 experienced engineers, which can ensure our strong R & D ability, also can guarantee our customization capability
XINGTE PRODUCTION LINE
1, Motor stator, rotor, and other related coil winding machine
2, Transformer-related product coil winding machine
3, voice coil-related product winding machine
4, inductor coil winding machine and
5, customized fully automatic line for the motor, speaker, transformer production line
Our Machine
Our factory

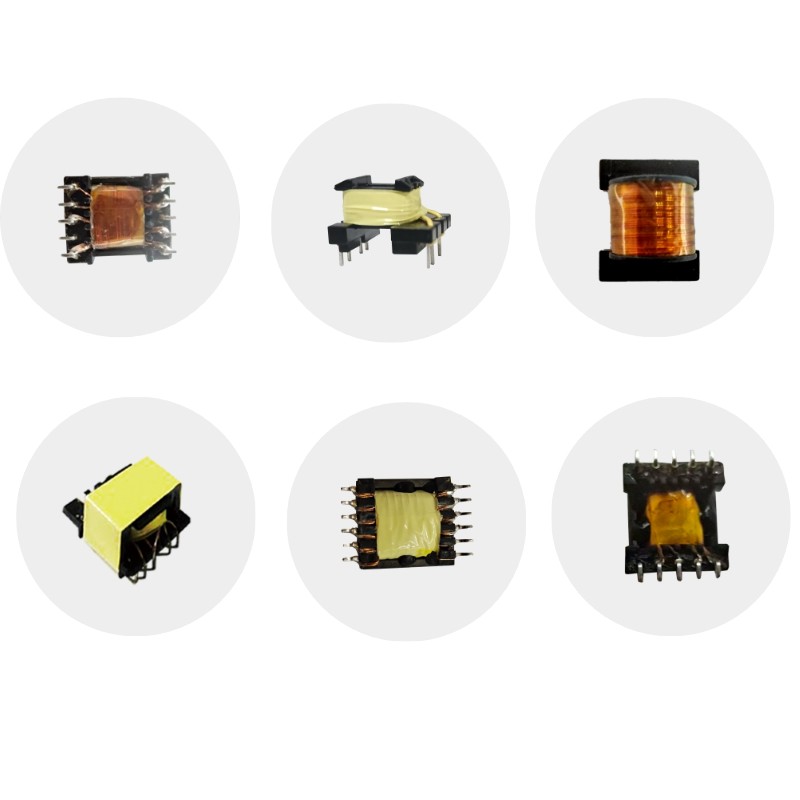

Finished product
